UCD Deaermild

UCD Deaermild

Deaermild offers continuous deaeration of low/high viscous liquid. A variety of models are available depending on required throughput.

Matsubo Corporation is the exclusive distributor of Deaermild.

Features

  • Designed for continuous process
    Reliable and robust seal
    Operation is fully automated
    Space saving
    Laboratory model (both continuous type and batch type) is available

Applications

Food (mayonnaise, mustard, ketchup, pickle solution, etc.)
Chemicals (polymerization, adhesives, paints, latex, etc.)
Cosmetics (shampoo, cream, toothpaste, etc.)
Paper manufacturing (coating liquid)
Pharmaceutical (tablet coating liquid, ointment, etc.)

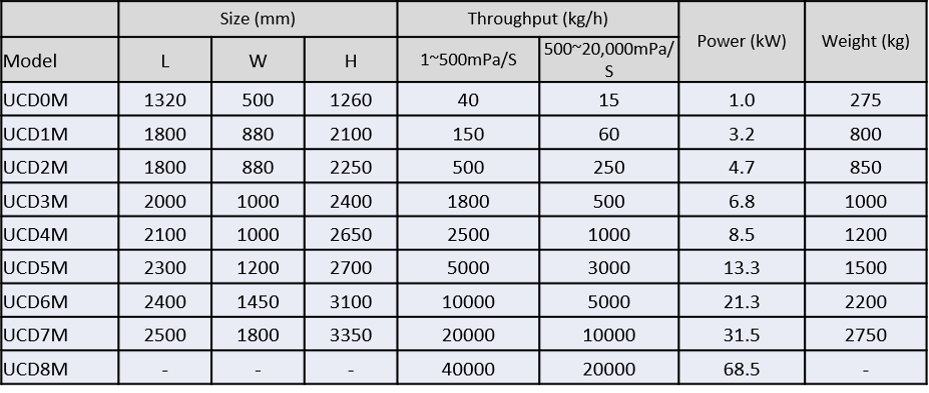

Specifications

Specifications

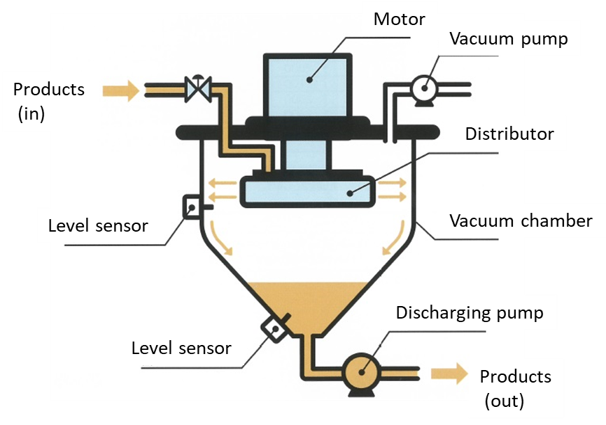

Working principle

1. Feeding
The vacuum chamber is depressurized with the vacuum pump. Product liquid is fed on the distributor, which is rotating, in
the vacuum chamber.

2. Deaeration
Product liquid is exposed to centrifugal force generated by the rotation of the distributor.
This improves deaeration and enhances formation of thin film layer of product liquid,
which resulted in breakage of bubbles.
Deaeration continues while product liquid flows down along the wall of the vacuum chamber,
where product liquid becomes a thin film layer.

3. Discharging
Processed product liquid stays in the vacuum chamber and the level of product liquid is maintained
automatically by controlling the discharging pump.
