Vibration Dryer / V-Dryer

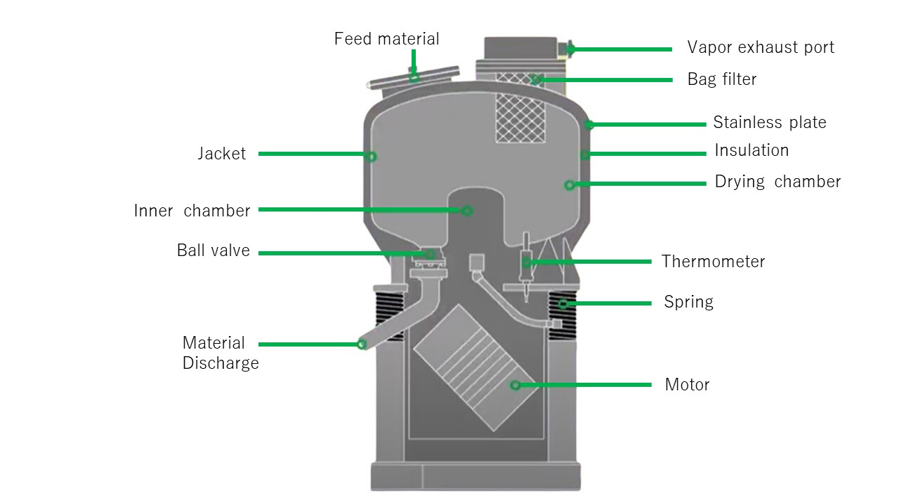

The vibration dryers can fluidize and dry powder and granular materials only by vibration and indirect heat.
The vibration mechanism with 2 vibration motors generates an elliptical vibration in a sloping radical direction.

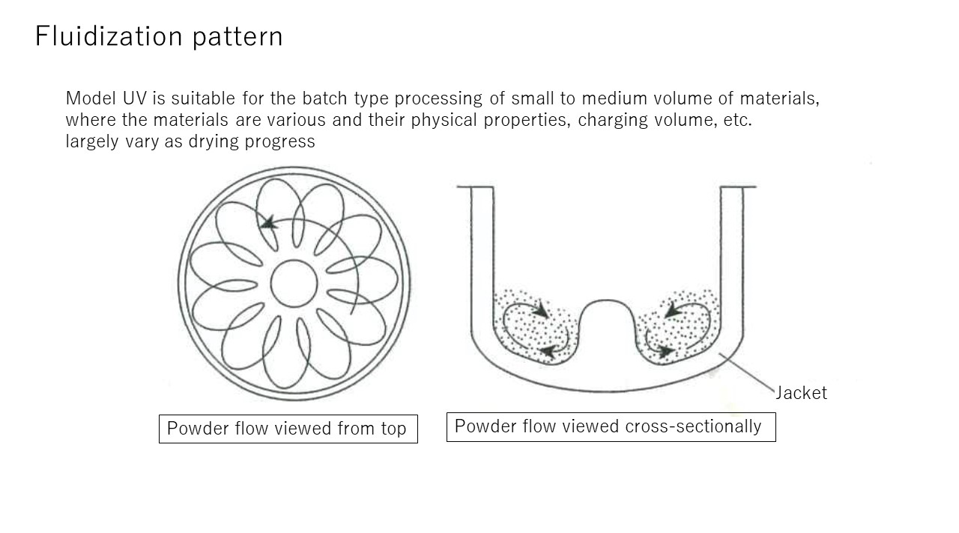

The vibration is applied from the bottom of the drying chamber and the granules in it will be fluidized moving up and down in a radial direction while circulating along the wall, thus the drying and mixing of granules can be performed at the same time.

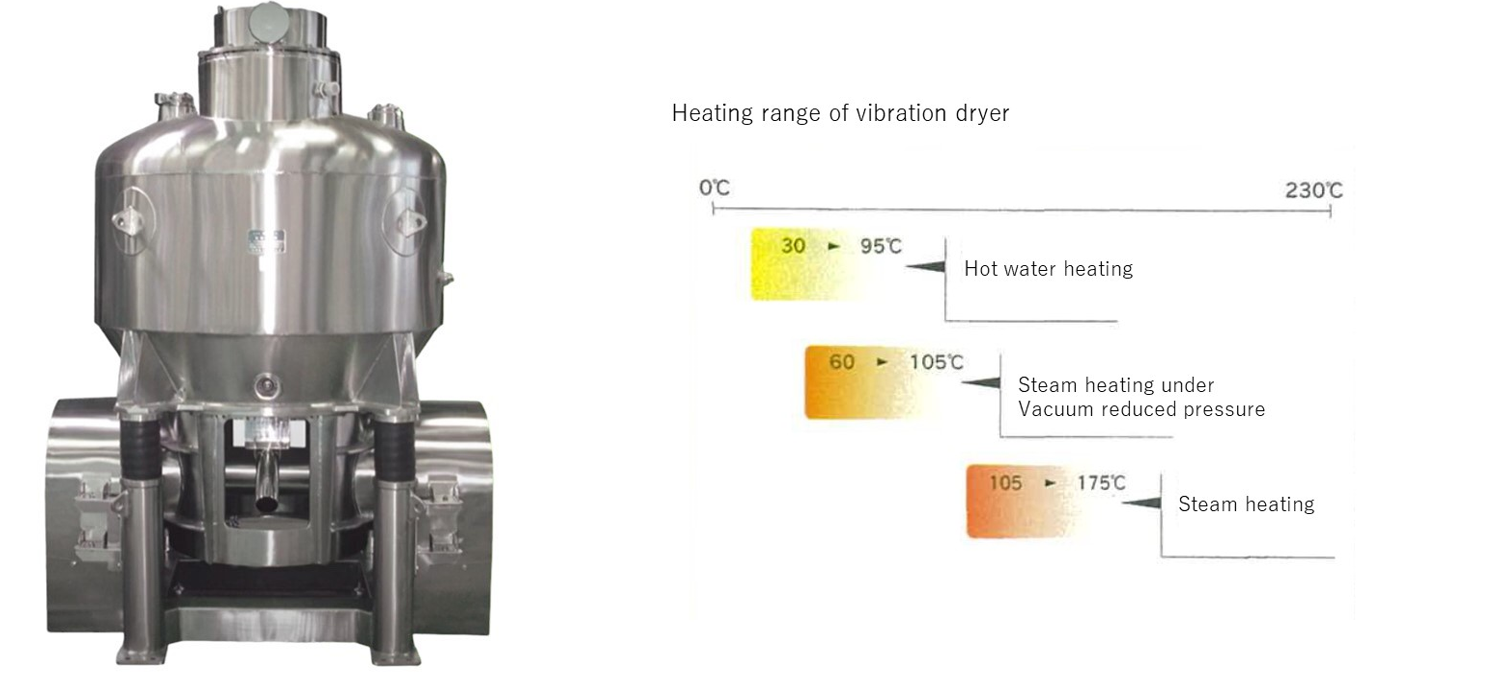

Features
-
Drying of nano-granules
Preventing the invasion of foreign matter
Drying of low temperature to high temperature
Drying of raw materials containing organic solvents
Drying of widely ranging material forms from slurry to paste
Easy to clean
optimum for automation
maintenance-free

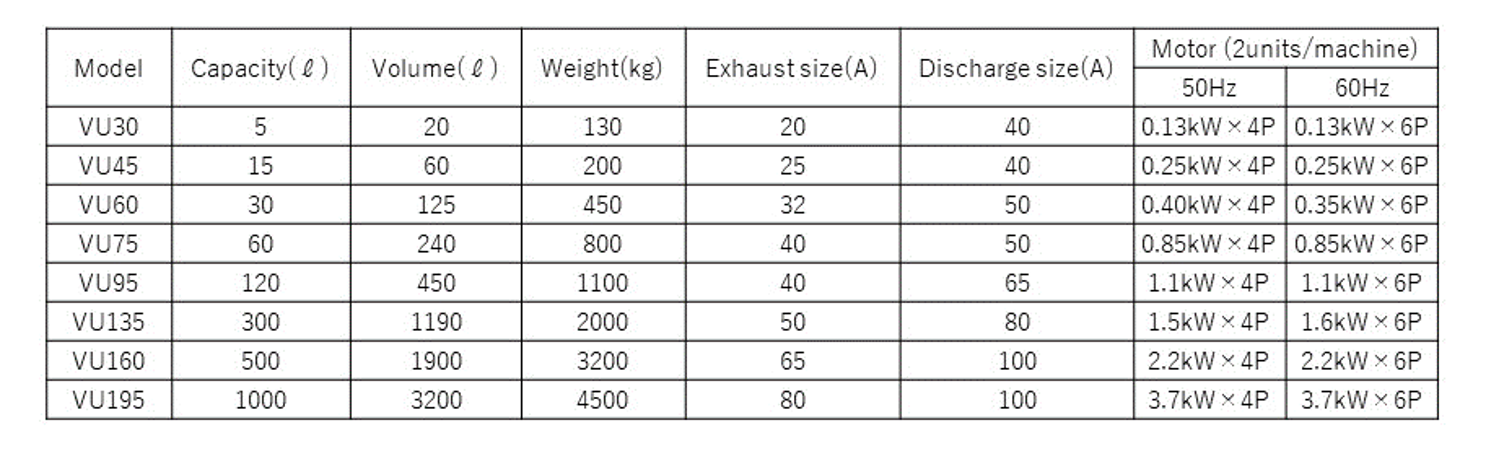

Specifications
Applications
Organic matter
various organic industrial chemicals, such as medicines, agricultural chemcals, dyes, pigments and food intermediates of medicines / active pharmaceutical ingredients of medicines / general investigational new drugs / glutathione / hyaluronic acid / amino acid / organic acid ammonum / boric acid powder / egg shells / protein residue / lipase / organic compounds
Inorganic matter
Various inorganic chemicals, such as abrasives, glass beads, black lead, carbon and inorganic salt
Silicone carbode / hollow silica / silica / potassium fluoride / glass / glass slurry / lime oversludge / barium titanate / zirconia / Lithium fluoride / Sericite neodymium
Metal powder
Pure iron, chrome steel, copper, zinc, cobalt alloys, rare-earth, metals, etc
Copper powder / tungsten carbide / tungsten / tungsten trioxide / polyamide / lanthanum oxide / nickel acetate / ferric hydroxide / tantalum powder / aluminum / aluminum nitride / lithium bromide / neodymium / rare-earth iron compounds / iron powder / Mickel alloys / aluminum paste / sodium iron cirate
Resin
Ion-exchange resin, phenol resin, acrylic resin, vinyl chloride resin, polyethylene resin Synthetic resin / Teflon beads / resin pellets / polyester chips / polymer resin
Ceramics
Various ceramics, such as alumina, silicon carbide, zirconia, silicon nitride and thitanium oxide Ceramic slurry / ceramics
Others
Electric materials / photographic raw materials / tubber chemicals / silicon processing effluent / recording materials / phtoresist / fluorescence substances / sealant / adhesive / catalyst
Specifications
