Turbo Screener
Turbo Screener is a high performance classification machine with flexible screen made of plastic. Inside the cylindrical screen powder is dispersed in Radial direction by rotating blades and the inner surface of screen is hit by powder mass. Thus powder is forcibly passed through the screen, At the same time screen gets pulsation caused by the hitting shock with powder.
Features
-
1. Possible to classify powder with very fine screen opening size.
As screen pulsation prevents screen from clogging, difficult powder can be classified.
2. Agglomerates are disintegrated by rotating blades.
Soft lumps of agglomeration can be disintegrated by rotating blades during classification process.
3. Easy dismantling and cleaning
Turbo screener is designed to meet GMP specifications, and it can be dismantled and cleaned with ease in a very short time.
4. High throughput despite its compact size.
As the throughput per unit screen area of Turbo Screener is very high comparing to conventional vibration screen, high capacity can be obtained even with a small machine.
Applications
◯Chemicals
・Inorganic material: Calcium carbonate, aluminum hydroxide, silica
・Pigments/Paints; Toners, organic pigments, powder coatings.
・Resin: Polycarbonate resin, epoxy resin, phenolic resin.
・Battery electrode materials: graphite, lithium compounds, cobalt compounds.
・Electronic materials; silver powder, copper powder, nickel powder.
・Ceramic materials; alumina, silicon nitride.
◯Pharmaceuticals
・Prescription drugs, magnesium oxide, lactose, cornstarch, herbal medicine, Other pharmaceutical additives, granulated products (granules, fine granules, powders).
◯Food
・Sweeteners, seasonings, powdered skim milk, spices, starch, tea, Health foods, food additives.
◯Cosmetics
・Foundation, titanium oxide, eye color ingredients.
Specifications
・Metal parts in contact with product are made of stainless steel SUS304. (Plastic parts is also available especially for battery material which should avoid metal contamination.)

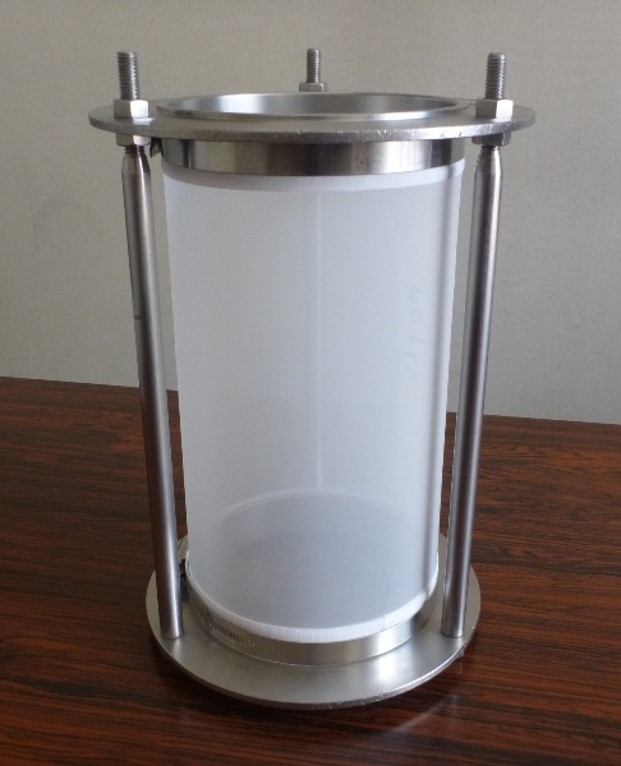

・Material of the screen is polyester. (Metal screen is also available.)

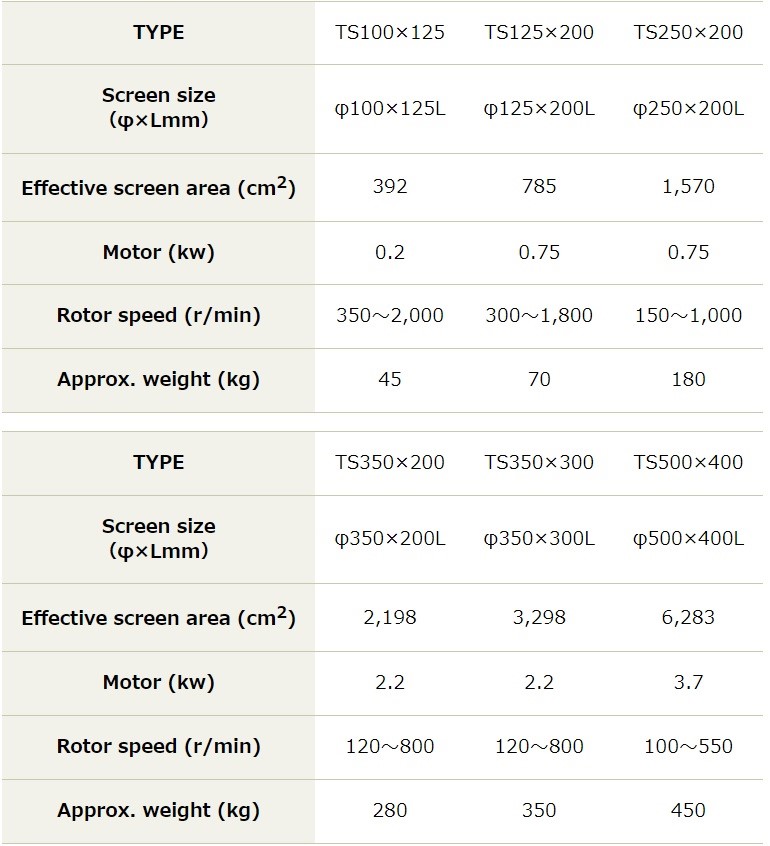

Specifications
