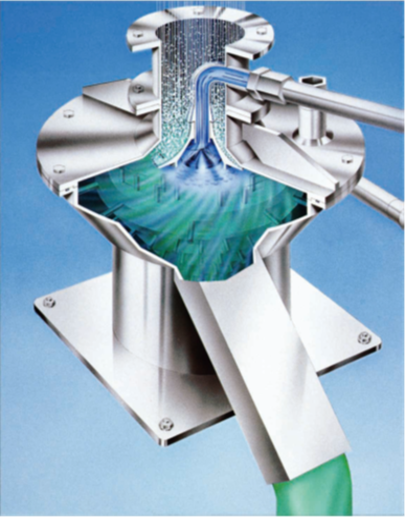

Spiral Pin Mixer
Continuous mixer capable of in-line processing.
The unique retention zone ensures that high-viscosity
materials are uniformly processed without short-pass.
Battery processing is one of best applications of Spiral Pin Mixer and followings are examples to use for:
・Continuous and solid kneading
・Continuous mixing of precursors, cathode and anode materials

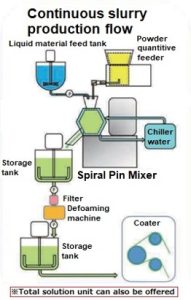

・Forming paste for coater
・Continuous dissolution of separator materials
・Continuous surface treatment of powder raw materials
Features
-
Processing powders to viscous materials in one machine featuring:
・Continuous and solid kneading
・In-line processing highly viscous materials up to several 10,000 CP
・Self-cleaning possible by running with cleaning agent
Applications
Battery ( optional ceramic inner available )
-Precursor,Anode & Cathode material mixing
-Paste forming for coatin
-Dissolution of separator materia
-Surface treatment of powder material

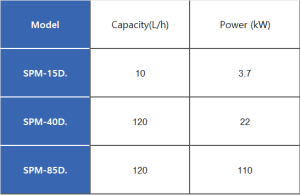

Specifications
・Top lid and scraper caps to prevent blockage of the feed inlet

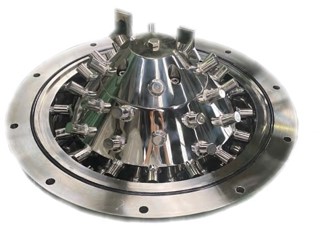

・Rotor pins number can be changed depending on application

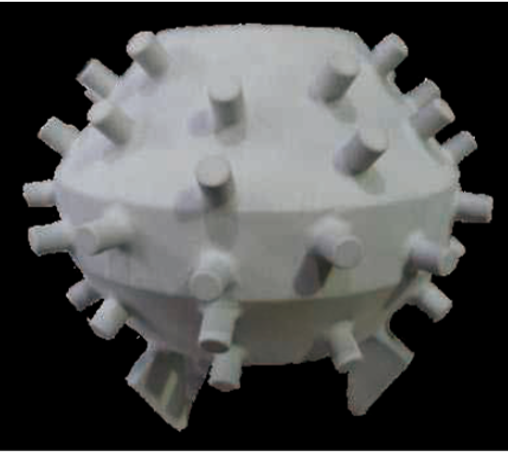

・Contamination free with ceramic thermal spray coating on rotor and casing
・Heating and cooling process with jacket and piping in rotor (patent pending)
・Automatic open/close product outlet (optional)
