Aqua Turbo TZ
Aqua Turbo TZ is a high-efficiency annular gap type bead mill with greatly improved grinding performance.
By installing a stirring pin that allows the beads to flow efficiently, the deviation of the beads can be reduced, and the pulverization and dispersibility can be greatly improved.
In addition, because the screen has a large area, it is possible to process ultra-high viscosity products (about 150,000mPa･s) even with small-diameter beads.
Features
-
1)High Viscosity/High Concentration
It is possible to process high viscosity and high concentration slurries of about150,000mPa·s
2)Agitation pin
By concentrating the beads in the grinding zone with the stirring pin effect, significant improvement in grinding and dispersing performance is realized
3)Large area screen
The large area screen and the stirring pin scraping mechanism enable the high viscosity slurry to be pulverized and dispersed without increasing the internal pressure of the mill
4)Small diameter bead
The structure that concentrates the beads in the grinding zone allows for efficient processing with low bead usage
Applications
Cosmetics : Sunscreen, Lip stick, Nail polish
Medical/Biochemical : Tablet coating liquid, Crystal crushing, Cell crushing
Foods : Chocolate, Cocoa, Pasty foods, Food additives
Electronics : Magnetics, Capacitors, Insulators
Chemicals : Carbon fiber, Industrial oil, Plymerized toner
Ink : gravure, offset, flexo
Paint/Pigment

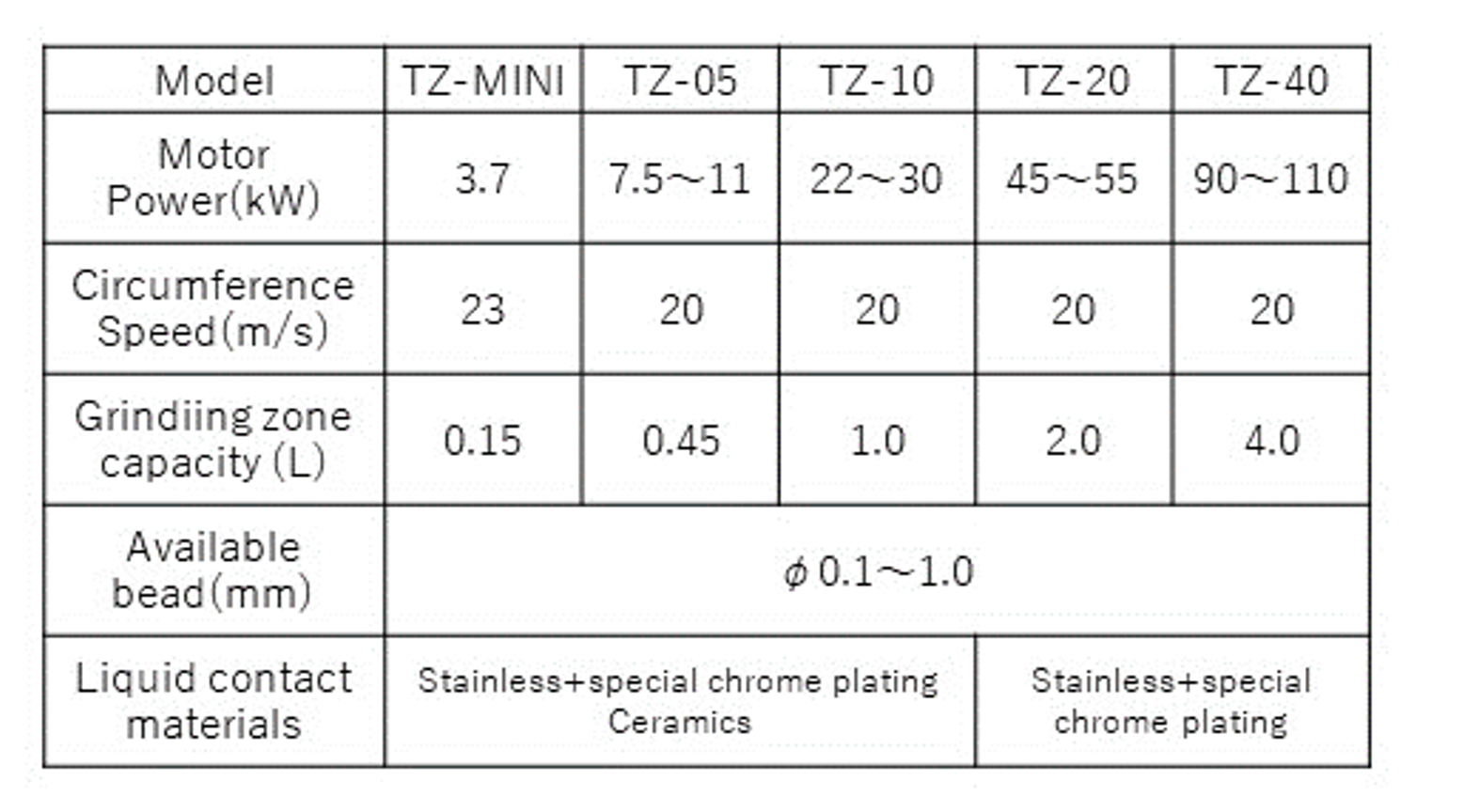

Specifications
